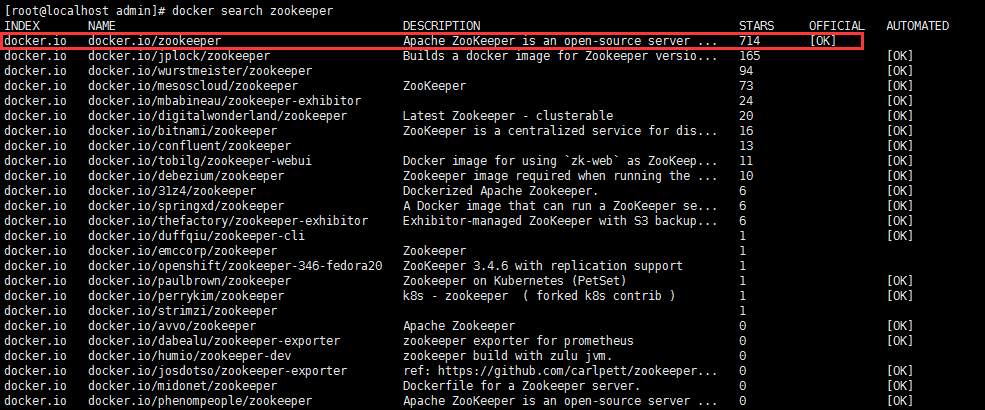

啟動Docker后，先看一下我們有哪些選擇。
有官方的當然選擇官方啦~
下載：
[root@localhost admin]# docker pull zookeeper
Using default tag: latest
Trying to pull repository docker.io/library/zookeeper ...
latest: Pulling from docker.io/library/zookeeper
1ab2bdfe9778: Already exists
7aaf9a088d61: Pull complete
80a55c9c9fe8: Pull complete
a0086b0e6eec: Pull complete
4165e7457cad: Pull complete
bcba13bcf3a1: Pull complete
41c03a109e47: Pull complete
4d5281c6b0d4: Pull complete
Digest: sha256:175d6bb1471e1e37a48bfa41a9da047c80fade60fd585eae3a0e08a4ce1d39ed
Status: Downloaded newer image for docker.io/zookeeper:latest
查看鏡像詳情
[root@localhost admin]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
192.168.192.128:443/hello-2 latest 0c24558dd388 42 hours ago 660 MB
192.168.192.128:443/hello latest a3ba3d430bed 42 hours ago 660 MB
docker.io/nginx latest 5a3221f0137b 13 days ago 126 MB
docker.io/zookeeper latest 3487af26dee9 13 days ago 225 MB
docker.io/registry latest f32a97de94e1 5 months ago 25.8 MB
docker.io/mongo latest 8bf72137439e 12 months ago 380 MB
docker.io/influxdb latest 34de2bdc2d7f 12 months ago 213 MB
docker.io/centos latest 5182e96772bf 12 months ago 200 MB
docker.io/grafana/grafana latest 3e16e05be9a3 13 months ago 245 MB
docker.io/hello-world latest 2cb0d9787c4d 13 months ago 1.85 kB
docker.io/java latest d23bdf5b1b1b 2 years ago 643 MB
[root@localhost admin]# docker inspect 3487af26dee9
[
{
"Id": "sha256:3487af26dee9ef9eacee9a97521bc4f0243bef0b285247258c32f4a03cab92c5",
"RepoTags": [
"docker.io/zookeeper:latest"
],
"RepoDigests": [
"docker.io/zookeeper@sha256:175d6bb1471e1e37a48bfa41a9da047c80fade60fd585eae3a0e08a4ce1d39ed"
],
"Parent": "",
"Comment": "",
"Created": "2019-08-15T06:10:50.178554969Z",
"Container": "9a38467115f1952161d6075135d5c5287967282b834cfe68183339c810f9652b",
"ContainerConfig": {
"Hostname": "9a38467115f1",
"Domainname": "",
"User": "",
"AttachStdin": false,
"AttachStdout": false,
"AttachStderr": false,
"ExposedPorts": {
"2181/tcp": {},
"2888/tcp": {},
"3888/tcp": {},
"8080/tcp": {}
},
"Tty": false,
"OpenStdin": false,
"StdinOnce": false,
"Env": [
"PATH=/usr/local/openjdk-8/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/apache-zookeeper-3.5.5-bin/bin",
"LANG=C.UTF-8",
"JAVA_HOME=/usr/local/openjdk-8",
"JAVA_VERSION=8u222",
"JAVA_BASE_URL=https://github.com/AdoptOpenJDK/openjdk8-upstream-binaries/releases/download/jdk8u222-b10/OpenJDK8U-jre_",
"JAVA_URL_VERSION=8u222b10",
"ZOO_CONF_DIR=/conf",
"ZOO_DATA_DIR=/data",
"ZOO_DATA_LOG_DIR=/datalog",
"ZOO_LOG_DIR=/logs",
"ZOO_TICK_TIME=2000",
"ZOO_INIT_LIMIT=5",
"ZOO_SYNC_LIMIT=2",
"ZOO_AUTOPURGE_PURGEINTERVAL=0",
"ZOO_AUTOPURGE_SNAPRETAINCOUNT=3",
"ZOO_MAX_CLIENT_CNXNS=60",
"ZOO_STANDALONE_ENABLED=true",
"ZOO_ADMINSERVER_ENABLED=true",
"ZOOCFGDIR=/conf"
],
"Cmd": [
"/bin/sh",
"-c",
"#(nop) ",
"CMD [\"zkServer.sh\" \"start-foreground\"]"
],
"ArgsEscaped": true,
"Image": "sha256:20bf3cc1bd5b5766b79da5265e94007d0802ce241df1636d0f63e211a79a0e3e",
"Volumes": {
"/data": {},
"/datalog": {},
"/logs": {}
},
"WorkingDir": "/apache-zookeeper-3.5.5-bin",
"Entrypoint": [
"/docker-entrypoint.sh"
],
"OnBuild": null,
"Labels": {}
},
"DockerVersion": "18.06.1-ce",
"Author": "",
"Config": {
"Hostname": "",
"Domainname": "",
"User": "",
"AttachStdin": false,
"AttachStdout": false,
"AttachStderr": false,
"ExposedPorts": {
"2181/tcp": {},
"2888/tcp": {},
"3888/tcp": {},
"8080/tcp": {}
},
"Tty": false,
"OpenStdin": false,
"StdinOnce": false,
"Env": [
"PATH=/usr/local/openjdk-8/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/apache-zookeeper-3.5.5-bin/bin",
"LANG=C.UTF-8",
"JAVA_HOME=/usr/local/openjdk-8",
"JAVA_VERSION=8u222",
"JAVA_BASE_URL=https://github.com/AdoptOpenJDK/openjdk8-upstream-binaries/releases/download/jdk8u222-b10/OpenJDK8U-jre_",
"JAVA_URL_VERSION=8u222b10",
"ZOO_CONF_DIR=/conf",
"ZOO_DATA_DIR=/data",
"ZOO_DATA_LOG_DIR=/datalog",
"ZOO_LOG_DIR=/logs",
"ZOO_TICK_TIME=2000",
"ZOO_INIT_LIMIT=5",
"ZOO_SYNC_LIMIT=2",
"ZOO_AUTOPURGE_PURGEINTERVAL=0",
"ZOO_AUTOPURGE_SNAPRETAINCOUNT=3",
"ZOO_MAX_CLIENT_CNXNS=60",
"ZOO_STANDALONE_ENABLED=true",
"ZOO_ADMINSERVER_ENABLED=true",
"ZOOCFGDIR=/conf"
],
"Cmd": [
"zkServer.sh",
"start-foreground"
],
"ArgsEscaped": true,
"Image": "sha256:20bf3cc1bd5b5766b79da5265e94007d0802ce241df1636d0f63e211a79a0e3e",
"Volumes": {
"/data": {},
"/datalog": {},
"/logs": {}
},
"WorkingDir": "/apache-zookeeper-3.5.5-bin",
"Entrypoint": [
"/docker-entrypoint.sh"
],
"OnBuild": null,
"Labels": null
},
"Architecture": "amd64",
"Os": "linux",
"Size": 225126346,
"VirtualSize": 225126346,
"GraphDriver": {
"Name": "overlay2",
"Data": {
"LowerDir": "/var/lib/docker/overlay2/92185ebf7638a7b34180cfb87795dd758405cbad4fd0139b92a227d1a4b61847/diff:/var/lib/docker/overlay2/8787e91f5c03a7c03cee072019eca49a0402a0a0902be39ed0b5d651a79cce35/diff:/var/lib/docker/overlay2/ce5864ddfa4d1478047aa9fcaa03744e8a4078ebe43b41e7836c96c54c724044/diff:/var/lib/docker/overlay2/fc99437bcfbabb9e8234c06c90d1c60e58c34ac053aff1adc368b7ad3a50c158/diff:/var/lib/docker/overlay2/1779297a8980830229bd4bf58bd741730956d6797332fd07b863a1b48dcb6fa2/diff:/var/lib/docker/overlay2/ee735aa3608d890ac4751dd93581a67cb54a5dd4714081e9d09d0ebd9dbc3501/diff:/var/lib/docker/overlay2/cf6b3cbc42f3c8d1fb09b29db0dafbb4dceb120925970ab8a3871eaa8562414c/diff",
"MergedDir": "/var/lib/docker/overlay2/a7fcc1b78c472cde943f20d1d4495f145308507b5fe3da8800c33dc4ce426156/merged",
"UpperDir": "/var/lib/docker/overlay2/a7fcc1b78c472cde943f20d1d4495f145308507b5fe3da8800c33dc4ce426156/diff",
"WorkDir": "/var/lib/docker/overlay2/a7fcc1b78c472cde943f20d1d4495f145308507b5fe3da8800c33dc4ce426156/work"
}
},
"RootFS": {
"Type": "layers",
"Layers": [
"sha256:1c95c77433e8d7bf0f519c9d8c9ca967e2603f0defbf379130d9a841cca2e28e",
"sha256:2bf534399acac9c6b09a0b1d931223808000b04400a749f08187ed9ee435738d",
"sha256:eb25e0278d41b9ac637d8cb2e391457cf44ce8d2bfe0646d0c9faefc96413f91",
"sha256:e54bd3566d9ef3e1309a5af6caf8682f32c6ac4d6adfcbd3e601cfee4e2e0e85",
"sha256:c79435051d529a7b86f5f9fc32e7e2ec401929434e5596f02a2af731f55c9f28",
"sha256:76e0d7b2d700e6d17924b985703c7b5b84fb39ddcc0a1181b41217c2a11dffc4",
"sha256:eecdc37df6afd77091641588f9639f63b65e8eb141e56529e00da44419c5bd04",
"sha256:36e788f2d91a89375df5901f31cca33776f887c00ddfd3cf9f2466fa4cb794d6"
]
}
}
]

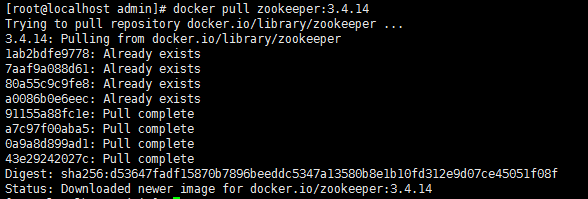

默認拉取最新的是3.5.X版本，如果你需要3.4.X版本的，要指定標簽
單機
# 最后那個是鏡像的ID[root@localhost admin]# docker run -d -p 2181:2181 --name some-zookeeper --restart always 3487af26dee9
d5c6f857cd88c342acf63dd58e838a4cdf912daa6c8c0115091147136e819307
[root@localhost admin]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
d5c6f857cd88 3487af26dee9 "/docker-entrypoin..." 4 seconds ago Up 3 seconds 2888/tcp, 3888/tcp, 0.0.0.0:2181->2181/tcp, 8080/tcp some-zookeeper
[root@localhost admin]# docker exec -it d5c6f857cd88 bash
root@d5c6f857cd88:/apache-zookeeper-3.5.5-bin# ./bin/zkCli.sh
Connecting to localhost:2181
2019-08-29 07:15:21,623 [myid:] - INFO [main:Environment@109] - Client environment:zookeeper.version=3.5.5-390fe37ea45dee01bf87dc1c042b5e3dcce88653, built on 05/03/2019 12:07 GMT
2019-08-29 07:15:21,679 [myid:] - INFO [main:Environment@109] - Client environment:host.name=d5c6f857cd88
2019-08-29 07:15:21,680 [myid:] - INFO [main:Environment@109] - Client environment:java.version=1.8.0_222
2019-08-29 07:15:21,717 [myid:] - INFO [main:Environment@109] - Client environment:java.vendor=Oracle Corporation
2019-08-29 07:15:21,718 [myid:] - INFO [main:Environment@109] - Client environment:java.home=/usr/local/openjdk-8
2019-08-29 07:15:21,725 [myid:] - INFO [main:Environment@109] - Client environment:java.class.path=/apache-zookeeper-3.5.5-bin/bin/../zookeeper-server/target/classes:/apache-zookeeper-3.5.5-bin/bin/../build/classes:/apache-zookeeper-3.5.5-bin/bin/../zookeeper-server/target/lib/*.jar:/apache-zookeeper-3.5.5-bin/bin/../build/lib/*.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/zookeeper-jute-3.5.5.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/zookeeper-3.5.5.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/slf4j-log4j12-1.7.25.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/slf4j-api-1.7.25.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/netty-all-4.1.29.Final.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/log4j-1.2.17.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/json-simple-1.1.1.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jline-2.11.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jetty-util-9.4.17.v20190418.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jetty-servlet-9.4.17.v20190418.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jetty-server-9.4.17.v20190418.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jetty-security-9.4.17.v20190418.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jetty-io-9.4.17.v20190418.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jetty-http-9.4.17.v20190418.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/javax.servlet-api-3.1.0.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jackson-databind-2.9.8.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jackson-core-2.9.8.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/jackson-annotations-2.9.0.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/commons-cli-1.2.jar:/apache-zookeeper-3.5.5-bin/bin/../lib/audience-annotations-0.5.0.jar:/apache-zookeeper-3.5.5-bin/bin/../zookeeper-*.jar:/apache-zookeeper-3.5.5-bin/bin/../zookeeper-server/src/main/resources/lib/*.jar:/conf:
2019-08-29 07:15:22,108 [myid:] - INFO [main:Environment@109] - Client environment:java.library.path=/usr/java/packages/lib/amd64:/usr/lib64:/lib64:/lib:/usr/lib
2019-08-29 07:15:22,109 [myid:] - INFO [main:Environment@109] - Client environment:java.io.tmpdir=/tmp
2019-08-29 07:15:22,109 [myid:] - INFO [main:Environment@109] - Client environment:java.compiler=<NA>
2019-08-29 07:15:22,109 [myid:] - INFO [main:Environment@109] - Client environment:os.name=Linux
2019-08-29 07:15:22,109 [myid:] - INFO [main:Environment@109] - Client environment:os.arch=amd64
2019-08-29 07:15:22,110 [myid:] - INFO [main:Environment@109] - Client environment:os.version=3.10.0-862.9.1.el7.x86_64
2019-08-29 07:15:22,110 [myid:] - INFO [main:Environment@109] - Client environment:user.name=root
2019-08-29 07:15:22,110 [myid:] - INFO [main:Environment@109] - Client environment:user.home=/root
2019-08-29 07:15:22,110 [myid:] - INFO [main:Environment@109] - Client environment:user.dir=/apache-zookeeper-3.5.5-bin
2019-08-29 07:15:22,118 [myid:] - INFO [main:Environment@109] - Client environment:os.memory.free=11MB
2019-08-29 07:15:22,148 [myid:] - INFO [main:Environment@109] - Client environment:os.memory.max=247MB
2019-08-29 07:15:22,148 [myid:] - INFO [main:Environment@109] - Client environment:os.memory.total=15MB
2019-08-29 07:15:22,206 [myid:] - INFO [main:ZooKeeper@868] - Initiating client connection, connectString=localhost:2181 sessionTimeout=30000 watcher=org.apache.zookeeper.ZooKeeperMain$MyWatcher@3b95a09c
2019-08-29 07:15:22,239 [myid:] - INFO [main:X509Util@79] - Setting -D jdk.tls.rejectClientInitiatedRenegotiation=true to disable client-initiated TLS renegotiation
2019-08-29 07:15:22,285 [myid:] - INFO [main:ClientCnxnSocket@237] - jute.maxbuffer value is 4194304 Bytes
2019-08-29 07:15:22,366 [myid:] - INFO [main:ClientCnxn@1653] - zookeeper.request.timeout value is 0. feature enabled=
Welcome to ZooKeeper!
JLine support is enabled
2019-08-29 07:15:22,563 [myid:localhost:2181] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@1112] - Opening socket connection to server localhost/0:0:0:0:0:0:0:1:2181. Will not attempt to authenticate using SASL (unknown error)
2019-08-29 07:15:23,443 [myid:localhost:2181] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@959] - Socket connection established, initiating session, client: /0:0:0:0:0:0:0:1:37198, server: localhost/0:0:0:0:0:0:0:1:2181
2019-08-29 07:15:23,520 [myid:localhost:2181] - INFO [main-SendThread(localhost:2181):ClientCnxn$SendThread@1394] - Session establishment complete on server localhost/0:0:0:0:0:0:0:1:2181, sessionid = 0x10001216d990000, negotiated timeout = 30000
WATCHER::
WatchedEvent state:SyncConnected type:None path:null
[zk: localhost:2181(CONNECTED) 0] ls /
[zookeeper]
[zk: localhost:2181(CONNECTED) 1] quit
WATCHER::
WatchedEvent state:Closed type:None path:null
2019-08-29 07:15:37,042 [myid:] - INFO [main:ZooKeeper@1422] - Session: 0x10001216d990000 closed
2019-08-29 07:15:37,043 [myid:] - INFO [main-EventThread:ClientCnxn$EventThread@524] - EventThread shut down for session: 0x10001216d990000
root@d5c6f857cd88:/apache-zookeeper-3.5.5-bin# exit
exit
[root@localhost admin]#

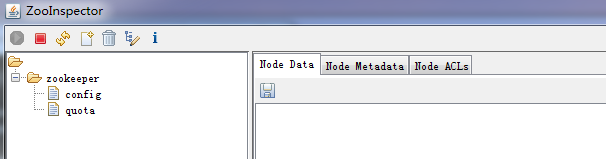

在外部訪問（192.168.192.128:2181）
集群

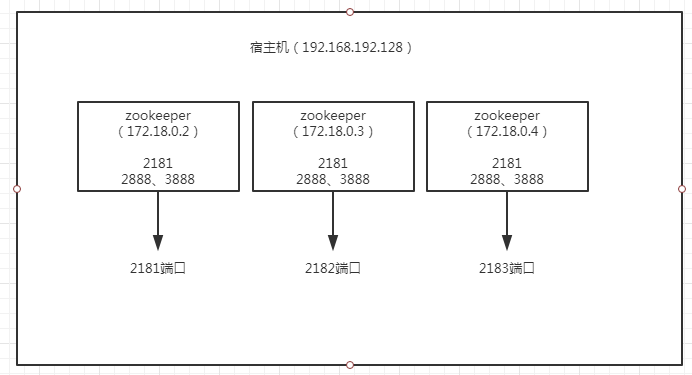

環境：單臺宿主機（192.168.192.128），啟動三個zookeeper容器。
這里涉及一個問題，就是Docker容器之間通信的問題，這個很重要！
Docker有三種網絡模式，bridge、host、none，在你創建容器的時候，不指定--network默認是bridge。
bridge：為每一個容器分配IP，并將容器連接到一個docker0虛擬網橋，通過docker0網橋與宿主機通信。也就是說，此模式下，你不能用宿主機的IP+容器映射端口來進行Docker容器之間的通信。
host：容器不會虛擬自己的網卡，配置自己的IP，而是使用宿主機的IP和端口。這樣一來，Docker容器之間的通信就可以用宿主機的IP+容器映射端口
none：無網絡。
=====================================================
先在本地創建目錄：
[root@localhost admin]# mkdir /usr/local/zookeeper-cluster
[root@localhost admin]# mkdir /usr/local/zookeeper-cluster/node1
[root@localhost admin]# mkdir /usr/local/zookeeper-cluster/node2
[root@localhost admin]# mkdir /usr/local/zookeeper-cluster/node3
[root@localhost admin]# ll /usr/local/zookeeper-cluster/
total 0
drwxr-xr-x. 2 root root 6 Aug 28 23:02 node1
drwxr-xr-x. 2 root root 6 Aug 28 23:02 node2
drwxr-xr-x. 2 root root 6 Aug 28 23:02 node3
然后執行命令啟動
docker run -d -p 2181:2181 -p 2888:2888 -p 3888:3888 --name zookeeper_node1 --privileged --restart always \
-v /usr/local/zookeeper-cluster/node1/volumes/data:/data \
-v /usr/local/zookeeper-cluster/node1/volumes/datalog:/datalog \
-v /usr/local/zookeeper-cluster/node1/volumes/logs:/logs \
-e ZOO_MY_ID=1 \
-e "ZOO_SERVERS=server.1=192.168.192.128:2888:3888;2181 server.2=192.168.192.128:2889:3889;2182 server.3=192.168.192.128:2890:3890;2183" 3487af26dee9
docker run -d -p 2182:2181 -p 2889:2888 -p 3889:3888 --name zookeeper_node2 --privileged --restart always \
-v /usr/local/zookeeper-cluster/node2/volumes/data:/data \
-v /usr/local/zookeeper-cluster/node2/volumes/datalog:/datalog \
-v /usr/local/zookeeper-cluster/node2/volumes/logs:/logs \
-e ZOO_MY_ID=2 \
-e "ZOO_SERVERS=server.1=192.168.192.128:2888:3888;2181 server.2=192.168.192.128:2889:3889;2182 server.3=192.168.192.128:2890:3890;2183" 3487af26dee9
docker run -d -p 2183:2181 -p 2890:2888 -p 3890:3888 --name zookeeper_node3 --privileged --restart always \
-v /usr/local/zookeeper-cluster/node3/volumes/data:/data \
-v /usr/local/zookeeper-cluster/node3/volumes/datalog:/datalog \
-v /usr/local/zookeeper-cluster/node3/volumes/logs:/logs \
-e ZOO_MY_ID=3 \
-e "ZOO_SERVERS=server.1=192.168.192.128:2888:3888;2181 server.2=192.168.192.128:2889:3889;2182 server.3=192.168.192.128:2890:3890;2183" 3487af26dee9
【坑】
乍一看，沒什么問題啊，首先映射端口到宿主機，然后三個zookeeper之間的訪問地址則是宿主機IP:映射端口，沒毛病啊；
看我前面講的網絡模式就能看出問題，ZOO_SERVERS里面的IP有問題，犯這個錯誤都是不了解Docker的網絡模式的。什么錯誤往下看。

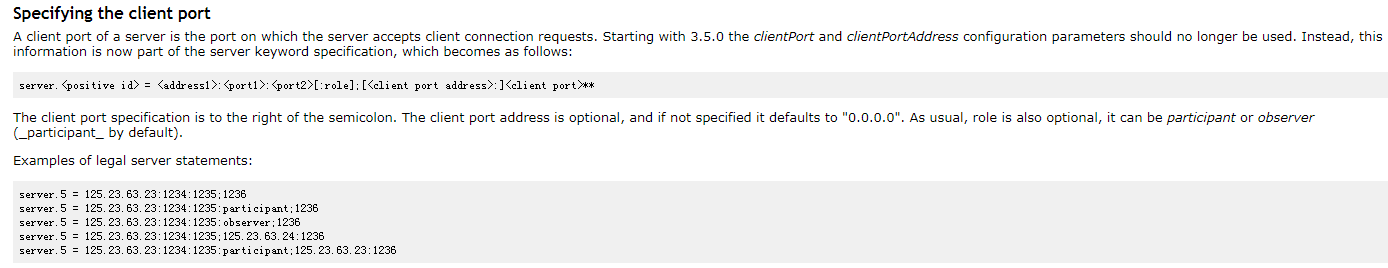

關于ZOO_SERVERS
什么意思呢，3.5.0開始，不應該再使用clientPort和clientPortAddress配置參數。相反，這些信息現在是server關鍵字規范的一部分。
端口映射三個容器不一樣，比如2181/2182/2183，因為是一臺宿主機嘛，端口不能沖突，如果你不在同一臺機器，就不用修改端口。
最后的那個參數是鏡像ID，也可以是鏡像名稱:TAG。
--privileged=true參數是為了解決【chown: changing ownership of '/data': Permission denied】，也可以省略true
執行結果：
[root@localhost admin]# docker run -d -p 2181:2181 -p 2888:2888 -p 3888:3888 --name zookeeper_node1 --privileged --restart always \
> -v /usr/local/zookeeper-cluster/node1/volumes/data:/data \
> -v /usr/local/zookeeper-cluster/node1/volumes/datalog:/datalog \
> -v /usr/local/zookeeper-cluster/node1/volumes/logs:/logs \
> -e ZOO_MY_ID=1 \
> -e "ZOO_SERVERS=server.1=192.168.192.128:2888:3888;2181 server.2=192.168.192.128:2889:3889;2182 server.3=192.168.192.128:2890:3890;2183" 3487af26dee9
4bfa6bbeb936037e178a577e5efbd06d4a963e91d67274413b933fd189917776
[root@localhost admin]# docker run -d -p 2182:2181 -p 2889:2888 -p 3889:3888 --name zookeeper_node2 --privileged --restart always \
> -v /usr/local/zookeeper-cluster/node2/volumes/data:/data \
> -v /usr/local/zookeeper-cluster/node2/volumes/datalog:/datalog \
> -v /usr/local/zookeeper-cluster/node2/volumes/logs:/logs \
> -e ZOO_MY_ID=2 \
> -e "ZOO_SERVERS=server.1=192.168.192.128:2888:3888;2181 server.2=192.168.192.128:2889:3889;2182 server.3=192.168.192.128:2890:3890;2183" 3487af26dee9
dbb7f1f323a09869d043152a4995e73bad5f615fd81bf11143fd1c28180f9869
[root@localhost admin]# docker run -d -p 2183:2181 -p 2890:2888 -p 3890:3888 --name zookeeper_node3 --privileged --restart always \
> -v /usr/local/zookeeper-cluster/node3/volumes/data:/data \
> -v /usr/local/zookeeper-cluster/node3/volumes/datalog:/datalog \
> -v /usr/local/zookeeper-cluster/node3/volumes/logs:/logs \
> -e ZOO_MY_ID=3 \
> -e "ZOO_SERVERS=server.1=192.168.192.128:2888:3888;2181 server.2=192.168.192.128:2889:3889;2182 server.3=192.168.192.128:2890:3890;2183" 3487af26dee9
6dabae1d92f0e861cc7515c014c293f80075c2762b254fc56312a6d3b450a919
[root@localhost admin]#
查看啟動的容器
[root@localhost admin]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
6dabae1d92f0 3487af26dee9 "/docker-entrypoin..." 31 seconds ago Up 29 seconds 8080/tcp, 0.0.0.0:2183->2181/tcp, 0.0.0.0:2890->2888/tcp, 0.0.0.0:3890->3888/tcp zookeeper_node3
dbb7f1f323a0 3487af26dee9 "/docker-entrypoin..." 36 seconds ago Up 35 seconds 8080/tcp, 0.0.0.0:2182->2181/tcp, 0.0.0.0:2889->2888/tcp, 0.0.0.0:3889->3888/tcp zookeeper_node2
4bfa6bbeb936 3487af26dee9 "/docker-entrypoin..." 46 seconds ago Up 45 seconds 0.0.0.0:2181->2181/tcp, 0.0.0.0:2888->2888/tcp, 0.0.0.0:3888->3888/tcp, 8080/tcp zookeeper_node1
[root@localhost admin]#
不是說有錯誤嗎？怎么還啟動成功了？？我們來看下節點1的啟動日志
[root@localhost admin]# docker logs -f 4bfa6bbeb936
ZooKeeper JMX enabled by default
...
2019-08-29 09:20:22,665 [myid:1] - WARN [WorkerSender[myid=1]:QuorumCnxManager@677] - Cannot open channel to 2 at election address /192.168.192.128:3889
java.net.ConnectException: Connection refused (Connection refused)
at java.net.PlainSocketImpl.socketConnect(Native Method)
at java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:350)
at java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:206)
at java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:188)
at java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392)
at java.net.Socket.connect(Socket.java:589)
at org.apache.zookeeper.server.quorum.QuorumCnxManager.connectOne(QuorumCnxManager.java:648)
at org.apache.zookeeper.server.quorum.QuorumCnxManager.connectOne(QuorumCnxManager.java:705)
at org.apache.zookeeper.server.quorum.QuorumCnxManager.toSend(QuorumCnxManager.java:618)
at org.apache.zookeeper.server.quorum.FastLeaderElection$Messenger$WorkerSender.process(FastLeaderElection.java:477)
at org.apache.zookeeper.server.quorum.FastLeaderElection$Messenger$WorkerSender.run(FastLeaderElection.java:456)
at java.lang.Thread.run(Thread.java:748)
2019-08-29 09:20:22,666 [myid:1] - WARN [WorkerSender[myid=1]:QuorumCnxManager@677] - Cannot open channel to 3 at election address /192.168.192.128:3890
java.net.ConnectException: Connection refused (Connection refused)
at java.net.PlainSocketImpl.socketConnect(Native Method)
at java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:350)
at java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:206)
at java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:188)
at java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392)
at java.net.Socket.connect(Socket.java:589)
at org.apache.zookeeper.server.quorum.QuorumCnxManager.connectOne(QuorumCnxManager.java:648)
at org.apache.zookeeper.server.quorum.QuorumCnxManager.connectOne(QuorumCnxManager.java:705)
at org.apache.zookeeper.server.quorum.QuorumCnxManager.toSend(QuorumCnxManager.java:618)
at org.apache.zookeeper.server.quorum.FastLeaderElection$Messenger$WorkerSender.process(FastLeaderElection.java:477)
at org.apache.zookeeper.server.quorum.FastLeaderElection$Messenger$WorkerSender.run(FastLeaderElection.java:456)
at java.lang.Thread.run(Thread.java:748)
連接不上2 和 3，為什么呢，因為在默認的Docker網絡模式下，通過宿主機的IP+映射端口，根本找不到啊！他們有自己的IP啊！如下：
[root@localhost admin]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
6dabae1d92f0 3487af26dee9 "/docker-entrypoin..." 5 minutes ago Up 5 minutes 8080/tcp, 0.0.0.0:2183->2181/tcp, 0.0.0.0:2890->2888/tcp, 0.0.0.0:3890->3888/tcp zookeeper_node3
dbb7f1f323a0 3487af26dee9 "/docker-entrypoin..." 6 minutes ago Up 6 minutes 8080/tcp, 0.0.0.0:2182->2181/tcp, 0.0.0.0:2889->2888/tcp, 0.0.0.0:3889->3888/tcp zookeeper_node2
4bfa6bbeb936 3487af26dee9 "/docker-entrypoin..." 6 minutes ago Up 6 minutes 0.0.0.0:2181->2181/tcp, 0.0.0.0:2888->2888/tcp, 0.0.0.0:3888->3888/tcp, 8080/tcp zookeeper_node1
[root@localhost admin]# docker inspect 4bfa6bbeb936
"Networks": {
"bridge": {
"IPAMConfig": null,
"Links": null,
"Aliases": null,
"NetworkID": "5fc1ce4362afe3d34fdf260ab0174c36fe4b7daf2189702eae48101a755079f3",
"EndpointID": "368237e4c903cc663111f1fe33ac4626a9100fb5a22aec85f5eccbc6968a1631",
"Gateway": "172.17.0.1",
"IPAddress": "172.17.0.2",
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:11:00:02"
}
}
}
}
]
[root@localhost admin]# docker inspect dbb7f1f323a0
"Networks": {
"bridge": {
"IPAMConfig": null,
"Links": null,
"Aliases": null,
"NetworkID": "5fc1ce4362afe3d34fdf260ab0174c36fe4b7daf2189702eae48101a755079f3",
"EndpointID": "8a9734044a566d5ddcd7cbbf6661abb2730742f7c73bd8733ede9ed8ef106659",
"Gateway": "172.17.0.1",
"IPAddress": "172.17.0.3",
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:11:00:03"
}
}
}
}
]
[root@localhost admin]# docker inspect 6dabae1d92f0
"Networks": {
"bridge": {
"IPAMConfig": null,
"Links": null,
"Aliases": null,
"NetworkID": "5fc1ce4362afe3d34fdf260ab0174c36fe4b7daf2189702eae48101a755079f3",
"EndpointID": "b10329b9940a07aacb016d8d136511ec388de02bf3bd0e0b50f7f4cbb7f138ec",
"Gateway": "172.17.0.1",
"IPAddress": "172.17.0.4",
"IPPrefixLen": 16,
"IPv6Gateway": "",
"GlobalIPv6Address": "",
"GlobalIPv6PrefixLen": 0,
"MacAddress": "02:42:ac:11:00:04"
}
}
}
}
]
node1---172.17.0.2
node2---172.17.0.3
node3---172.17.0.4
既然我們知道了它有自己的IP，那又出現另一個問題了，就是它的ip是動態的，啟動之前我們無法得知。有個解決辦法就是創建自己的bridge網絡，然后創建容器的時候指定ip。
【正確方式開始】
[root@localhost admin]# docker network create --driver bridge --subnet=172.18.0.0/16 --gateway=172.18.0.1 zoonet
8257c501652a214d27efdf5ef71ff38bfe222c3a2a7898be24b8df9db1fb3b13
[root@localhost admin]# docker network ls
NETWORK ID NAME DRIVER SCOPE
5fc1ce4362af bridge bridge local
6aa33e21444e host host local
20e563b93ce9 none null local
8257c501652a zoonet bridge local
[root@localhost admin]# docker network inspect 8257c501652a
[
{
"Name": "zoonet",
"Id": "8257c501652a214d27efdf5ef71ff38bfe222c3a2a7898be24b8df9db1fb3b13",
"Created": "2019-08-29T06:08:01.442601483-04:00",
"Scope": "local",
"Driver": "bridge",
"EnableIPv6": false,
"IPAM": {
"Driver": "default",
"Options": {},
"Config": [
{
"Subnet": "172.18.0.0/16",
"Gateway": "172.18.0.1"
}
]
},
"Internal": false,
"Attachable": false,
"Containers": {},
"Options": {},
"Labels": {}
}
]
然后我們修改一下zookeeper容器的創建命令。
docker run -d -p 2181:2181 --name zookeeper_node1 --privileged --restart always --network zoonet --ip 172.18.0.2 \
-v /usr/local/zookeeper-cluster/node1/volumes/data:/data \
-v /usr/local/zookeeper-cluster/node1/volumes/datalog:/datalog \
-v /usr/local/zookeeper-cluster/node1/volumes/logs:/logs \
-e ZOO_MY_ID=1 \
-e "ZOO_SERVERS=server.1=172.18.0.2:2888:3888;2181 server.2=172.18.0.3:2888:3888;2181 server.3=172.18.0.4:2888:3888;2181" 3487af26dee9
docker run -d -p 2182:2181 --name zookeeper_node2 --privileged --restart always --network zoonet --ip 172.18.0.3 \
-v /usr/local/zookeeper-cluster/node2/volumes/data:/data \
-v /usr/local/zookeeper-cluster/node2/volumes/datalog:/datalog \
-v /usr/local/zookeeper-cluster/node2/volumes/logs:/logs \
-e ZOO_MY_ID=2 \
-e "ZOO_SERVERS=server.1=172.18.0.2:2888:3888;2181 server.2=172.18.0.3:2888:3888;2181 server.3=172.18.0.4:2888:3888;2181" 3487af26dee9
docker run -d -p 2183:2181 --name zookeeper_node3 --privileged --restart always --network zoonet --ip 172.18.0.4 \
-v /usr/local/zookeeper-cluster/node3/volumes/data:/data \
-v /usr/local/zookeeper-cluster/node3/volumes/datalog:/datalog \
-v /usr/local/zookeeper-cluster/node3/volumes/logs:/logs \
-e ZOO_MY_ID=3 \
-e "ZOO_SERVERS=server.1=172.18.0.2:2888:3888;2181 server.2=172.18.0.3:2888:3888;2181 server.3=172.18.0.4:2888:3888;2181" 3487af26dee9
1. 由于2888 、3888不需要暴露，就不映射了；
2. 指定自己的網絡，并指定IP；
3. 每個容器之間環境是隔離的，所以容器內所用的端口一樣：2181/2888/3888
運行結果：
[root@localhost admin]# docker run -d -p 2181:2181 --name zookeeper_node1 --privileged --restart always --network zoonet --ip 172.18.0.2 \
> -v /usr/local/zookeeper-cluster/node1/volumes/data:/data \
> -v /usr/local/zookeeper-cluster/node1/volumes/datalog:/datalog \
> -v /usr/local/zookeeper-cluster/node1/volumes/logs:/logs \
> -e ZOO_MY_ID=1 \
> -e "ZOO_SERVERS=server.1=172.18.0.2:2888:3888;2181 server.2=172.18.0.3:2888:3888;2181 server.3=172.18.0.4:2888:3888;2181" 3487af26dee9
50c07cf11fab2d3b4da6d8ce48d8ed4a7beaab7d51dd542b8309f781e9920c36
[root@localhost admin]# docker run -d -p 2182:2181 --name zookeeper_node2 --privileged --restart always --network zoonet --ip 172.18.0.3 \
> -v /usr/local/zookeeper-cluster/node2/volumes/data:/data \
> -v /usr/local/zookeeper-cluster/node2/volumes/datalog:/datalog \
> -v /usr/local/zookeeper-cluster/node2/volumes/logs:/logs \
> -e ZOO_MY_ID=2 \
> -e "ZOO_SERVERS=server.1=172.18.0.2:2888:3888;2181 server.2=172.18.0.3:2888:3888;2181 server.3=172.18.0.4:2888:3888;2181" 3487af26dee9
649a4dbfb694504acfe4b8e11b990877964477bb41f8a230bd191cba7d20996f
[root@localhost admin]# docker run -d -p 2183:2181 --name zookeeper_node3 --privileged --restart always --network zoonet --ip 172.18.0.4 \
> -v /usr/local/zookeeper-cluster/node3/volumes/data:/data \
> -v /usr/local/zookeeper-cluster/node3/volumes/datalog:/datalog \
> -v /usr/local/zookeeper-cluster/node3/volumes/logs:/logs \
> -e ZOO_MY_ID=3 \
> -e "ZOO_SERVERS=server.1=172.18.0.2:2888:3888;2181 server.2=172.18.0.3:2888:3888;2181 server.3=172.18.0.4:2888:3888;2181" 3487af26dee9
c8bc1b9ae9adf86e9c7f6a3264f883206c6d0e4f6093db3200de80ef39f57160
[root@localhost admin]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
c8bc1b9ae9ad 3487af26dee9 "/docker-entrypoin..." 17 seconds ago Up 16 seconds 2888/tcp, 3888/tcp, 8080/tcp, 0.0.0.0:2183->2181/tcp zookeeper_node3
649a4dbfb694 3487af26dee9 "/docker-entrypoin..." 22 seconds ago Up 21 seconds 2888/tcp, 3888/tcp, 8080/tcp, 0.0.0.0:2182->2181/tcp zookeeper_node2
50c07cf11fab 3487af26dee9 "/docker-entrypoin..." 33 seconds ago Up 32 seconds 2888/tcp, 3888/tcp, 0.0.0.0:2181->2181/tcp, 8080/tcp zookeeper_node1
[root@localhost admin]#
進入容器內部驗證一下：
[root@localhost admin]# docker exec -it 50c07cf11fab bash
root@50c07cf11fab:/apache-zookeeper-3.5.5-bin# ./bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /conf/zoo.cfg
Client port found: 2181. Client address: localhost.
Mode: follower
root@50c07cf11fab:/apache-zookeeper-3.5.5-bin# exit
exit
[root@localhost admin]# docker exec -it 649a4dbfb694 bash
root@649a4dbfb694:/apache-zookeeper-3.5.5-bin# ./bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /conf/zoo.cfg
Client port found: 2181. Client address: localhost.
Mode: leader
root@649a4dbfb694:/apache-zookeeper-3.5.5-bin# exit
exit
[root@localhost admin]# docker exec -it c8bc1b9ae9ad bash
root@c8bc1b9ae9ad:/apache-zookeeper-3.5.5-bin# ./bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: /conf/zoo.cfg
Client port found: 2181. Client address: localhost.
Mode: follower
root@c8bc1b9ae9ad:/apache-zookeeper-3.5.5-bin# exit
exit
[root@localhost admin]#

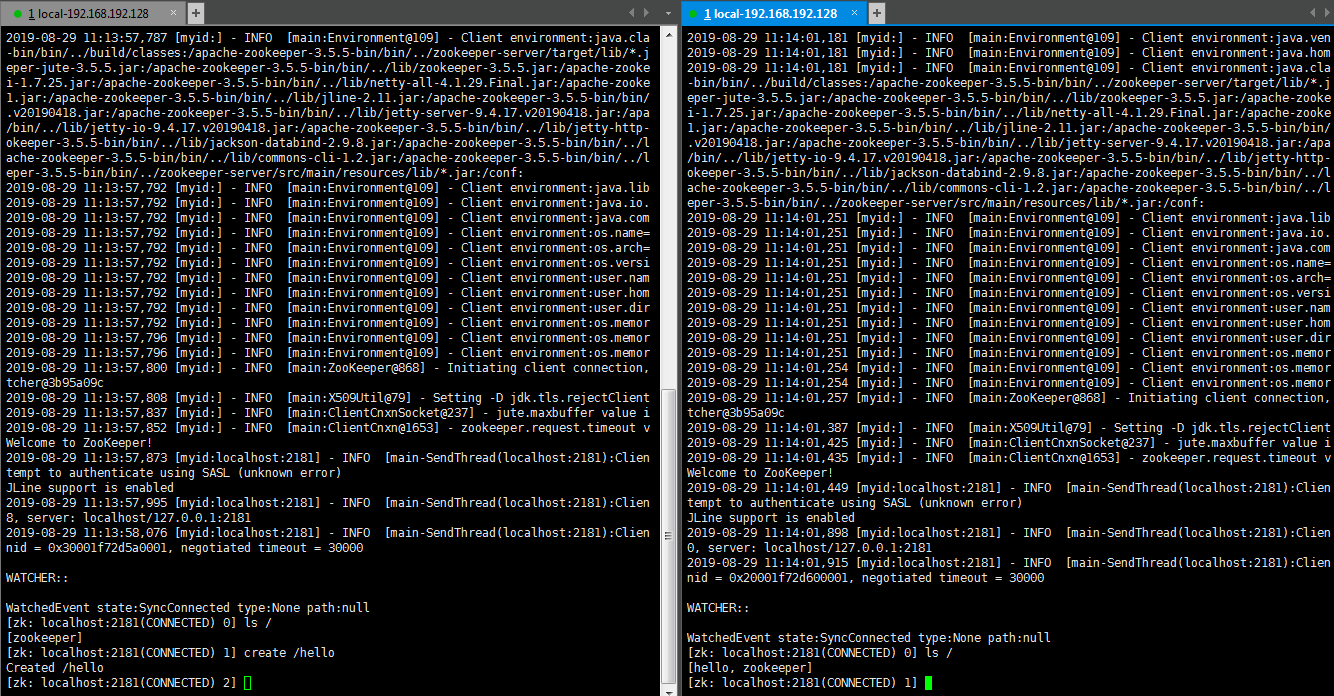

在驗證一下創建節點
開啟防火墻，以供外部訪問
firewall-cmd --zone=public --add-port=2181/tcp --permanent
firewall-cmd --zone=public --add-port=2182/tcp --permanent
firewall-cmd --zone=public --add-port=2183/tcp --permanent
systemctl restart firewalld
firewall-cmd --list-all

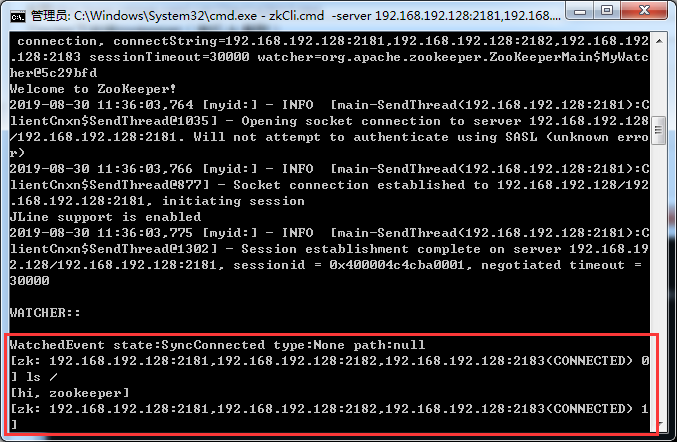

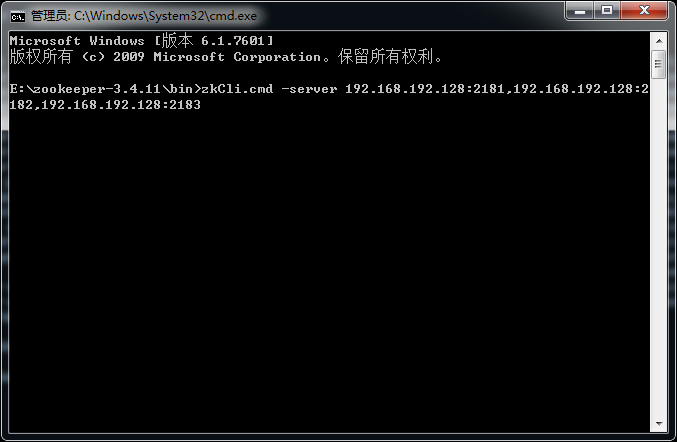

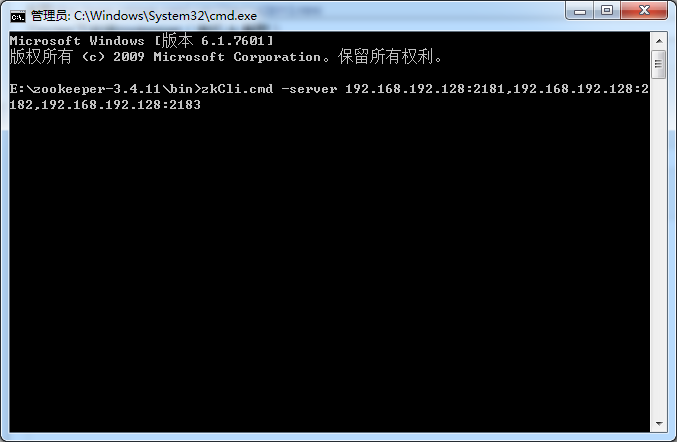

在本地，我用zookeeper的客戶端連接虛擬機上的集群：

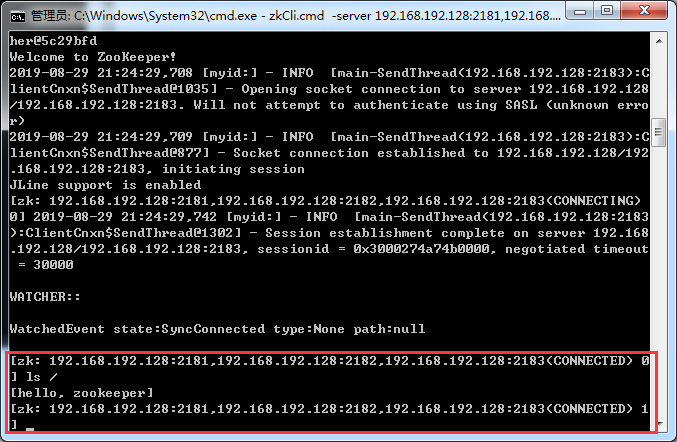

可以看到連接成功！
集群安裝方式二：通過docker stack deploy或docker-compose安裝
這里用docker-compose。先安裝docker-compose
[root@localhost admin]# curl -L "https://github.com/docker/compose/releases/download/1.24.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 617 0 617 0 0 145 0 --:--:-- 0:00:04 --:--:-- 145
100 15.4M 100 15.4M 0 0 131k 0 0:02:00 0:02:00 --:--:-- 136k
[root@localhost admin]# chmod +x /usr/local/bin/docker-compose
檢查版本（驗證是否安裝成功）
[root@localhost admin]# docker-compose --version
docker-compose version 1.24.1, build 4667896b
卸載的話
rm /usr/local/bin/docker-compose
開始配置，新建三個掛載目錄
[root@localhost admin]# mkdir /usr/local/zookeeper-cluster/node4
[root@localhost admin]# mkdir /usr/local/zookeeper-cluster/node5
[root@localhost admin]# mkdir /usr/local/zookeeper-cluster/node6
新建任意目錄，然后在里面新建一個文件
[root@localhost admin]# mkdir DockerComposeFolder
[root@localhost admin]# cd DockerComposeFolder/
[root@localhost DockerComposeFolder]# vim docker-compose.yml
文件內容如下：（自定義網絡見上面）

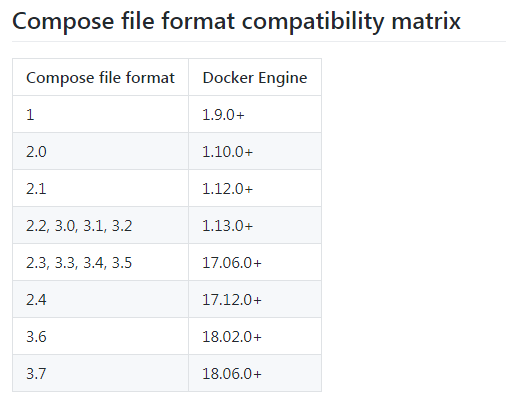

version: '3.1'
services:
zoo1:
image: zookeeper
restart: always
privileged: true
hostname: zoo1
ports:
- 2181:2181
volumes: # 掛載數據
- /usr/local/zookeeper-cluster/node4/data:/data
- /usr/local/zookeeper-cluster/node4/datalog:/datalog
environment:
ZOO_MY_ID: 4
ZOO_SERVERS: server.4=0.0.0.0:2888:3888;2181 server.5=zoo2:2888:3888;2181 server.6=zoo3:2888:3888;2181
networks:
default:
ipv4_address: 172.18.0.14
zoo2:
image: zookeeper
restart: always
privileged: true
hostname: zoo2
ports:
- 2182:2181
volumes: # 掛載數據
- /usr/local/zookeeper-cluster/node5/data:/data
- /usr/local/zookeeper-cluster/node5/datalog:/datalog
environment:
ZOO_MY_ID: 5
ZOO_SERVERS: server.4=zoo1:2888:3888;2181 server.5=0.0.0.0:2888:3888;2181 server.6=zoo3:2888:3888;2181
networks:
default:
ipv4_address: 172.18.0.15
zoo3:
image: zookeeper
restart: always
privileged: true
hostname: zoo3
ports:
- 2183:2181
volumes: # 掛載數據
- /usr/local/zookeeper-cluster/node6/data:/data
- /usr/local/zookeeper-cluster/node6/datalog:/datalog
environment:
ZOO_MY_ID: 6
ZOO_SERVERS: server.4=zoo1:2888:3888;2181 server.5=zoo2:2888:3888;2181 server.6=0.0.0.0:2888:3888;2181
networks:
default:
ipv4_address: 172.18.0.16
networks: # 自定義網絡
default:
external:
name: zoonet
注意yaml文件里不能有tab，只能有空格。
關于version與Docker版本的關系如下：
然后執行（-d后臺啟動）
docker-compose -f docker-compose.yml up -d
查看已啟動的容器
[root@localhost DockerComposeFolder]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
a2c14814037d zookeeper "/docker-entrypoin..." 6 minutes ago Up About a minute 2888/tcp, 3888/tcp, 8080/tcp, 0.0.0.0:2183->2181/tcp dockercomposefolder_zoo3_1
50310229b216 zookeeper "/docker-entrypoin..." 6 minutes ago Up About a minute 2888/tcp, 3888/tcp, 0.0.0.0:2181->2181/tcp, 8080/tcp dockercomposefolder_zoo1_1
475d8a9e2d08 zookeeper "/docker-entrypoin..." 6 minutes ago Up About a minute 2888/tcp, 3888/tcp, 8080/tcp, 0.0.0.0:2182->2181/tcp dockercomposefolder_zoo2_1
進入一個容器
[root@localhost DockerComposeFolder]# docker exec -it a2c14814037d bash
root@zoo3:/apache-zookeeper-3.5.5-bin# ./bin/zkCli.sh
Connecting to localhost:2181
....
WatchedEvent state:SyncConnected type:None path:null
[zk: localhost:2181(CONNECTED) 0]
[zk: localhost:2181(CONNECTED) 1] ls /
[zookeeper]
[zk: localhost:2181(CONNECTED) 2] create /hi
Created /hi
[zk: localhost:2181(CONNECTED) 3] ls /
[hi, zookeeper]
進入另一個容器
[root@localhost DockerComposeFolder]# docker exec -it 50310229b216 bash
root@zoo1:/apache-zookeeper-3.5.5-bin# ./bin/zkCli.sh
Connecting to localhost:2181
...
WatchedEvent state:SyncConnected type:None path:null
[zk: localhost:2181(CONNECTED) 0] ls /
[hi, zookeeper]
本地客戶端連接集群：
zkCli.cmd -server 192.168.192.128:2181,192.168.192.128:2182,192.168.192.128:2183
查看
停止所有活動容器
刪除所有已停止的容器
更多docker-compose的命令：
[root@localhost DockerComposeFolder]# docker-compose --help
Define and run multi-container applications with Docker.
Usage:
docker-compose [-f <arg>...] [options] [COMMAND] [ARGS...]
docker-compose -h|--help
Options:
-f, --file FILE Specify an alternate compose file
(default: docker-compose.yml)
-p, --project-name NAME Specify an alternate project name
(default: directory name)
--verbose Show more output
--log-level LEVEL Set log level (DEBUG, INFO, WARNING, ERROR, CRITICAL)
--no-ansi Do not print ANSI control characters
-v, --version Print version and exit
-H, --host HOST Daemon socket to connect to
--tls Use TLS; implied by --tlsverify
--tlscacert CA_PATH Trust certs signed only by this CA
--tlscert CLIENT_CERT_PATH Path to TLS certificate file
--tlskey TLS_KEY_PATH Path to TLS key file
--tlsverify Use TLS and verify the remote
--skip-hostname-check Don't check the daemon's hostname against the
name specified in the client certificate
--project-directory PATH Specify an alternate working directory
(default: the path of the Compose file)
--compatibility If set, Compose will attempt to convert keys
in v3 files to their non-Swarm equivalent
Commands:
build Build or rebuild services
bundle Generate a Docker bundle from the Compose file
config Validate and view the Compose file
create Create services
down Stop and remove containers, networks, images, and volumes
events Receive real time events from containers
exec Execute a command in a running container
help Get help on a command
images List images
kill Kill containers
logs View output from containers
pause Pause services
port Print the public port for a port binding
ps List containers
pull Pull service images
push Push service images
restart Restart services
rm Remove stopped containers
run Run a one-off command
scale Set number of containers for a service
start Start services
stop Stop services
top Display the running processes
unpause Unpause services
up Create and start containers
version Show the Docker-Compose version information
到此這篇關于Docker下安裝zookeeper(單機和集群)的文章就介紹到這了,更多相關Docker安裝zookeeper內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
