Python中使用matplotlib繪制mqtt數據實時圖像功能

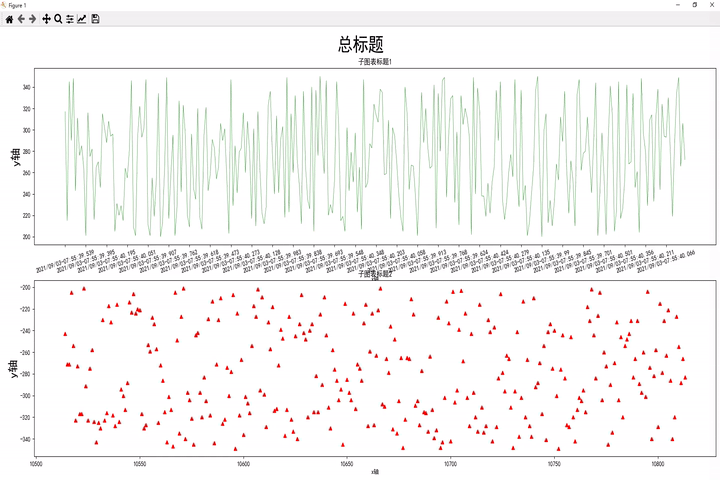

效果圖

mqtt發布

本代碼中publish是一個死循環，數據一直往外發送。

import random
import time
from paho.mqtt import client as mqtt_client
import json
from datetime import datetime

broker = 'broker.emqx.io'
port = 1883
topic = "/python/mqtt/li"
client_id = f'python-mqtt-{random.randint(0, 1000)}'  # 隨機生成客戶端id


def connect_mqtt():
    def on_connect(client, userdata, flags, rc):
        if rc == 0:
            print("Connected to MQTT Broker!")
        else:
            print("Failed to connect, return code %d\n", rc)

    client = mqtt_client.Client(client_id)
    client.on_connect = on_connect
    client.connect(broker, port)
    return client


def publish(client):
    while True:
        time.sleep(0.01)
        msg = json.dumps({"MAC": "0123456789",
                          "samplerate": 12,
                          "sampletime": str(datetime.utcnow().strftime('%Y/%m/%d-%H:%M:%S.%f')[:-3]),
                          "battery": 0.5,
                          "acc": [
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                              [random.randint(200, 350), -random.randint(200, 350), -random.randint(200, 350), random.randint(200, 350), random.randint(200, 350), random.randint(200, 350)],
                          ]})
        result = client.publish(topic, msg)
        status = result[0]
        if status == 0:
            print(f"Send `{msg}` to topic `{topic}`")
        else:
            print(f"Failed to send message to topic {topic}")


def run():
    client = connect_mqtt()
    client.loop_start()
    publish(client)


if __name__ == '__main__':
    run()

mqtt訂閱

from paho.mqtt import client as mqtt_client
import time
import os

broker = 'broker.emqx.io'
port = 1883
topic = "/python/mqtt/li"

def connect_mqtt(client_id):
    """    MQTT 連接函數。    """
    def on_connect(client, userdata, flags, rc):
        """
        連接回調函數
        在客戶端連接后被調用，在該函數中可以依據 rc 來判斷客戶端是否連接成功。
        """
        if rc == 0:
            print("Connected to MQTT Broker! return code %d" % rc)
        else:
            print("Failed to connect, return code %d\n", rc)

    client = mqtt_client.Client(client_id)
    # client.username_pw_set('uname', 'upwd')  # 鏈接mqtt所需的用戶名和密碼，沒有可不寫
    client.on_connect = on_connect
    client.connect(broker , port)
    return client


def subscribe(client: mqtt_client, a_topic):
    """     訂閱消息       """
    def on_message(client, userdata, msg):
        """
        消息回調函數
        在客戶端從 MQTT Broker 收到消息后被調用，在該函數中我們將打印出訂閱的 topic 名稱以及接收到的消息內容。
         * 這里可添加自定義數據處理程序
        """
        print('From topic : %s\n\tmsg : %s' % (msg.topic, msg.payload.decode()))

    client.subscribe(topic)
    client.on_message = on_message


def run(client_id, topic):
    client = connect_mqtt(client_id)
    subscribe(client, topic)
    client.loop_forever()

if __name__ == '__main__':
    run('test_eartag-003-python-li', 'zk100/gw/#')

matplotlib繪制動態圖

import matplotlib.pyplot as plt
import numpy as np

count = 100  # 圖中最多數據量

ax = list(range(count))  # 保存圖1數據
ay = [0] * 100
bx = list(range(count))  # 保存圖2數據
by = [0] * 100
num = count  # 計數

plt.ion()  # 開啟一個畫圖的窗口進入交互模式，用于實時更新數據
plt.rcParams['figure.figsize'] = (10, 10)  # 圖像顯示大小
plt.rcParams['font.sans-serif'] = ['SimHei']  # 防止中文標簽亂碼，還有通過導入字體文件的方法
plt.rcParams['axes.unicode_minus'] = False
plt.rcParams['lines.linewidth'] = 0.5  # 設置曲線線條寬度
plt.tight_layout()
while True:
    plt.clf()  # 清除刷新前的圖表，防止數據量過大消耗內存
    plt.suptitle("總標題", fontsize=30)  # 添加總標題，并設置文字大小
    g1 = np.random.random()  # 生成隨機數畫圖
    # 圖表1
    ax.append(num)  # 追加x坐標值
    ay.append(g1)  # 追加y坐標值
    agraphic = plt.subplot(2, 1, 1)
    agraphic.set_title('子圖表標題1')  # 添加子標題
    agraphic.set_xlabel('x軸', fontsize=10)  # 添加軸標簽
    agraphic.set_ylabel('y軸', fontsize=20)
    plt.plot(ax[-count:], ay[-count:], 'g-')  # 等于agraghic.plot(ax,ay,'g-')
    # 圖表2
    bx.append(num)
    by.append(g1)
    bgraghic = plt.subplot(2, 1, 2)
    bgraghic.set_title('子圖表標題2')
    bgraghic.plot(bx[-count:], by[-count:], 'r^')

    plt.pause(0.001)  # 設置暫停時間，太快圖表無法正常顯示
    num = num + 1

matplotlib繪制mqtt數據實時圖像

單線程

先啟動mqtt訂閱服務
mqtt訂閱中有阻塞，更新數據后因訂閱服務沒有結束，導致繪圖程序無法繪圖
先啟動繪圖程序
繪圖程序本身也是個循環，拿不到mqtt的實時數據，圖像無法更新

兩個服務加入協程，也不行。具體原因還不知道，容后補充。
mqtt作為線程啟動，可解決上述問題

import json
import random
from paho.mqtt import client as mqtt_client
import time
import datetime
from math import ceil, floor
import matplotlib.pyplot as plt
import _thread

# 公共變量
broker = 'broker.emqx.io'
topic = "/python/mqtt/li"
port = 1883
client_id = f'python-mqtt-li-{random.randint(0, 100)}'

show_num = 300

x_num = [-1]  # 計數
acc1 = []
acc2 = []
acc3 = []
acc4 = []
acc5 = []
acc6 = []
stime = []


"""mqtt subscribe topic"""
def str_microsecond_datetime2int_13timestamp(str_microsecond_datetime):
    """將字符串型【毫秒級】格式化時間 轉為 【13位】整型時間戳"""
    datetime_obj = datetime.datetime.strptime(str_microsecond_datetime, "%Y/%m/%d-%H:%M:%S.%f")
    obj_stamp = int(time.mktime(datetime_obj.timetuple()) * 1000.0 + datetime_obj.microsecond / 1000.0) / 1000.0
    return obj_stamp


def int2datetime(int_float_timestamp):
    """
    有小數點：分離小數點，整數轉為格式化時間，小數點直接跟在后面
    無小數點：從第10位進行分離，
    所以本函數只適用于時間戳整數位數大于9且小于11.
    """
    if '.' in str(int_float_timestamp):
        int_float = str(int_float_timestamp).split('.')
        date = time.localtime(int(int_float[0]))
        tempDate = time.strftime("%Y/%m/%d-%H:%M:%S", date)
        secondafter = '.' + str(int_float[1])
        return str(tempDate) + secondafter


def parse_mqttmsg(msg):
    """解析mqt頭數據   MAC samplerate sampletime battery acc"""
    content = json.loads(msg.payload.decode())
    span = 1000 / content['samplerate'] * 10
    time_span = [ceil(span) / 10 / 1000, floor(span) / 10 / 1000]
    sampletime = content['sampletime']
    sampletime_int = str_microsecond_datetime2int_13timestamp(sampletime)
    acc = content['acc']
    for i in range(len(acc)):
        x_num.append(x_num[-1] + 1)
        acc1.append(acc[i][0])
        acc2.append(acc[i][1])
        acc3.append(acc[i][2])
        acc4.append(acc[i][3])
        acc5.append(acc[i][4])
        acc6.append(acc[i][5])
        if i != 0:
            sampletime_int += time_span[i % 2]
            stime.append(int2datetime(round(sampletime_int * 1000, 0) / 1000))
        else:
            stime.append(sampletime)
        print(x_num[-1], stime[-1], acc1[-1], acc2[-1], acc3[-1], acc4[-1], acc5[-1], acc6[-1])


def connect_mqtt():
    def on_connect(client, userdata, flags, rc):
        if rc == 0:
            print("Connected to MQTT Broker!")
        else:
            print("Failed to connect, return code %d\n", rc)
            pass

    client = mqtt_client.Client(client_id)
    client.on_connect = on_connect
    client.connect(broker, port)
    return client


def subscribe(client: mqtt_client):
    def on_message(client, userdata, msg):
        # print(f"Received `{msg.payload.decode()}` from `{msg.topic}` topic")
        parse_mqttmsg(msg)

    client.subscribe(topic)
    client.on_message = on_message


def run():
    client = connect_mqtt()
    subscribe(client)
    client.loop_forever()


""" draw figures """
def draw_figure():
    plt.ion()  # 開啟一個畫圖的窗口進入交互模式，用于實時更新數據
    plt.rcParams['figure.figsize'] = (10, 10)  # 圖像顯示大小
    plt.rcParams['font.sans-serif'] = ['SimHei']  # 防止中文標簽亂碼，還有通過導入字體文件的方法
    plt.rcParams['axes.unicode_minus'] = False
    plt.rcParams['lines.linewidth'] = 0.5  # 設置曲線線條寬度


    count = 0
    while True:
        plt.clf()  # 清除刷新前的圖表，防止數據量過大消耗內存
        plt.suptitle("總標題", fontsize=30)  # 添加總標題，并設置文字大小
        plt.tight_layout()

        # 圖表1
        agraphic = plt.subplot(2, 1, 1)
        agraphic.set_title('子圖表標題1')  # 添加子標題
        agraphic.set_xlabel('x軸', fontsize=10)  # 添加軸標簽
        agraphic.set_ylabel('y軸', fontsize=20)
        plt.plot(x_num[1:][-show_num:], acc1[-show_num:], 'g-')
        try:
            xtricks = list(range(len(acc1) - show_num, len(acc1), 10))  # **1**
            xlabels = [stime[i] for i in xtricks]  # **2**
            plt.xticks(xtricks, xlabels, rotation=15)
        except:
            pass

        # 圖表2
        bgraghic = plt.subplot(2, 1, 2)
        bgraghic.set_title('子圖表標題2')
        bgraghic.set_xlabel('x軸', fontsize=10)  # 添加軸標簽
        bgraghic.set_ylabel('y軸', fontsize=20)
        bgraghic.plot(x_num[1:][-show_num:], acc2[-show_num:], 'r^')

        plt.pause(0.001)  # 設置暫停時間，太快圖表無法正常顯示
        count = count + 1


if __name__ == '__main__':
    # 多線程
    _thread.start_new_thread(run, ())
    draw_figure()

到此這篇關于Python中使用matplotlib繪制mqtt數據實時圖像的文章就介紹到這了,更多相關matplotlib繪制mqtt數據實時圖像內容請搜索腳本之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持腳本之家！
