仿vs實現WPF好看的進度條

熱門標簽:400免費電話怎么辦理 河北網絡回?fù)芡夂粝到y(tǒng) 威海電銷 400電話辦理最優質 外呼電銷機器人軟件 寧夏機器人電銷 關于宗地圖標注技術規范 t3出行地圖標注怎么做 河南語音外呼系統公司

為了界面友好,一般的操作時間較長時,都需要增加進度條提示。由于WPF自帶的進度條其實不怎么好看,而且沒啥視覺效果。后來,裝VS2012時,發現安裝過程中進度條效果不錯,于是上網查了資料。學習了ModernUI(開源的),地址:https://github.com/firstfloorsoftware/mui。

  后來,做了嘗試寫了個Demo,效果不錯。另外,專門錄制了tif文件,方便大家看到效果。廢話不多說,先展示效果:

一、效果展示

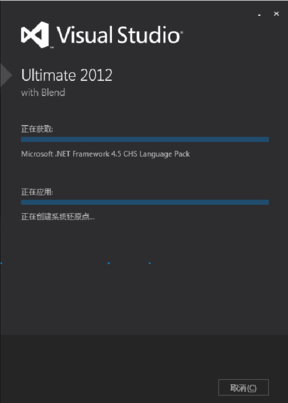

  A、VS2012安裝界面圖;

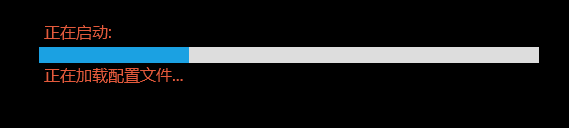

  B、個人嘗試Demo效果圖:

二、實現說明

  1、下載MUI相關代碼或者dll文件;

  2、工程中引入該dll,并引入其資源文件;

復制代碼 代碼如下:

Application.Resources>
        ResourceDictionary>
            ResourceDictionary.MergedDictionaries>
                ResourceDictionary Source="/FirstFloor.ModernUI;component/Assets/ModernUI.xaml" />
                ResourceDictionary Source="/FirstFloor.ModernUI;component/Assets/ModernUI.Light.xaml"/>
            /ResourceDictionary.MergedDictionaries>
        /ResourceDictionary>
    /Application.Resources>

  3、在需要顯示進度條的頁面,加入控件(其實還是WPF控件,只是MUI擴展了其樣式而已);

復制代碼 代碼如下:

Label Margin="280,169,0,0" Style="{StaticResource BackGroundContentText}" x:Name="lblMainState" HorizontalAlignment="Left" VerticalAlignment="Top">正在啟動:/Label>
        ProgressBar Margin="280,200,0,0" HorizontalAlignment="Left" VerticalAlignment="Top" Width="500" Minimum="0" x:Name="ProgressControlRealValue" Maximum="1"  Value="0.1" Height="16" IsIndeterminate="False"/>
        Label Margin="280,212,0,0" Style="{StaticResource BackGroundContentText}" x:Name="lblProcess" HorizontalAlignment="Left" VerticalAlignment="Top">正在加載地圖數據.../Label>
        ProgressBar Margin="280,250,0,0" HorizontalAlignment="Left" VerticalAlignment="Top"  Minimum="0" x:Name="ProgressControl"  Width="500" Maximum="2" Height="16" IsIndeterminate="True" />

  4、后臺實現,由于要根據情況更新進度文字及進度條的值。所以,這里用到了異步BackgroundWorker(具體可以網上查查相關資料);

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ComponentModel;

namespace Monitor.Class
{
  /// summary>
  /// 異步操作
  /// /summary>
  public class CWorker
  {
    /// summary>
    /// 對象
    /// /summary>
    private BackgroundWorker backgroundWorker;

    /// summary>
    /// 后臺執行的操作
    /// /summary>
    public Action BackgroundWork { get; set; }

    /// summary>
    /// 后臺任務執行完畢后事件
    /// /summary>
    public event EventHandlerBackgroundWorkerEventArgs> BackgroundWorkerCompleted;

    private BackgroundWorkerEventArgs _eventArgs;//異常參數

    /// summary>
    /// 構造
    /// /summary>
    public CWorker()
    {
      _eventArgs = new BackgroundWorkerEventArgs();
      backgroundWorker = new BackgroundWorker();
      backgroundWorker.WorkerReportsProgress = true;
      backgroundWorker.WorkerSupportsCancellation = true;
      backgroundWorker.DoWork += new DoWorkEventHandler(backgroundWorker1_DoWork);
      backgroundWorker.RunWorkerCompleted += new RunWorkerCompletedEventHandler(backgroundWorker1_RunWorkerCompleted);
    }

    /// summary>
    /// 開始工作
    /// /summary>
    public void BegionWork()
    {
      if (backgroundWorker.IsBusy)
        return;
      backgroundWorker.RunWorkerAsync();
    }

    /// summary>
    /// 工作
    /// /summary>
    /// param name="sender">/param>
    /// param name="e">/param>
    private void backgroundWorker1_DoWork(object sender, DoWorkEventArgs e)
    {
      if (BackgroundWork != null)
      {
        try
        {
          BackgroundWork();
        }
        catch (Exception ex)
        {
          _eventArgs.BackGroundException = ex;
        }
      }
    }

    /// summary>
    /// 完成
    /// /summary>
    /// param name="sender">/param>
    /// param name="e">/param>
    private void backgroundWorker1_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e)
    {
      if (this.BackgroundWorkerCompleted != null)
      {
        this.BackgroundWorkerCompleted(null, _eventArgs);
      }
    }
  }

  /// summary>
  /// 事件
  /// /summary>
  public class BackgroundWorkerEventArgs : EventArgs
  {
    /// summary>
    /// 后臺程序運行時拋出的異常
    /// /summary>
    public Exception BackGroundException { get; set; }
  }
}

namespace Monitor
{
  /// summary>
  /// Splash.xaml 的交互邏輯
  /// /summary>
  public partial class Splash : Window
  {
    MainWindow m_MainWindow = null;//主窗口
    CWorker m_Work = null;//任務

    public Splash()
    {
      InitializeComponent();
      m_MainWindow = new MainWindow();//創建主窗口對象
      m_Work = new CWorker();
      m_Work.BackgroundWork = this.ProcessDo;
      m_Work.BackgroundWorkerCompleted += new EventHandlerBackgroundWorkerEventArgs>(m_Work_BackgroundWorkerCompleted);
    }

    /// summary>
    /// 進度提示
    /// /summary>
    public void ProcessDo()
    {
      m_MainWindow.InitData(this);
    }

    /// summary>
    /// 移動
    /// /summary>
    /// param name="sender">/param>
    /// param name="e">/param>
    private void Grid_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
    {
      this.DragMove();
    }

    /// summary>
    /// 窗口加載
    /// /summary>
    /// param name="sender">/param>
    /// param name="e">/param>
    private void Window_Loaded(object sender, RoutedEventArgs e)
    {
      m_Work.BegionWork();
    }

    /// summary>
    /// 執行完成
    /// /summary>
    /// param name="sender">/param>
    /// param name="e">/param>
    void m_Work_BackgroundWorkerCompleted(object sender, BackgroundWorkerEventArgs e)
    {
      m_MainWindow.Show();
      this.Close();
    }

    /// summary>
    /// 賦值
    /// /summary>
    /// param name="text">/param>
    private delegate void SetProcessLabelDelegate(string text, double processValue);
    public void SetProcessValue(string text, double processValue)
    {
      if (!Dispatcher.CheckAccess())
      {
        Dispatcher.Invoke(DispatcherPriority.Send, new SetProcessLabelDelegate(SetProcessValue), text, processValue);
        return;
      }
      this.lblProcess.Content = text;
      this.ProgressControlRealValue.Value = processValue;
    }
  }
}

以上所述就是本文的全部內容了,希望大家能夠喜歡。
