1. imageZMQ庫實現
imageZMQ庫鏈接：https://github.com/jeffbass/imagezmq
該庫原本是用于樹莓派上的視頻傳輸，其包含很多示例，有興趣可以去看看。

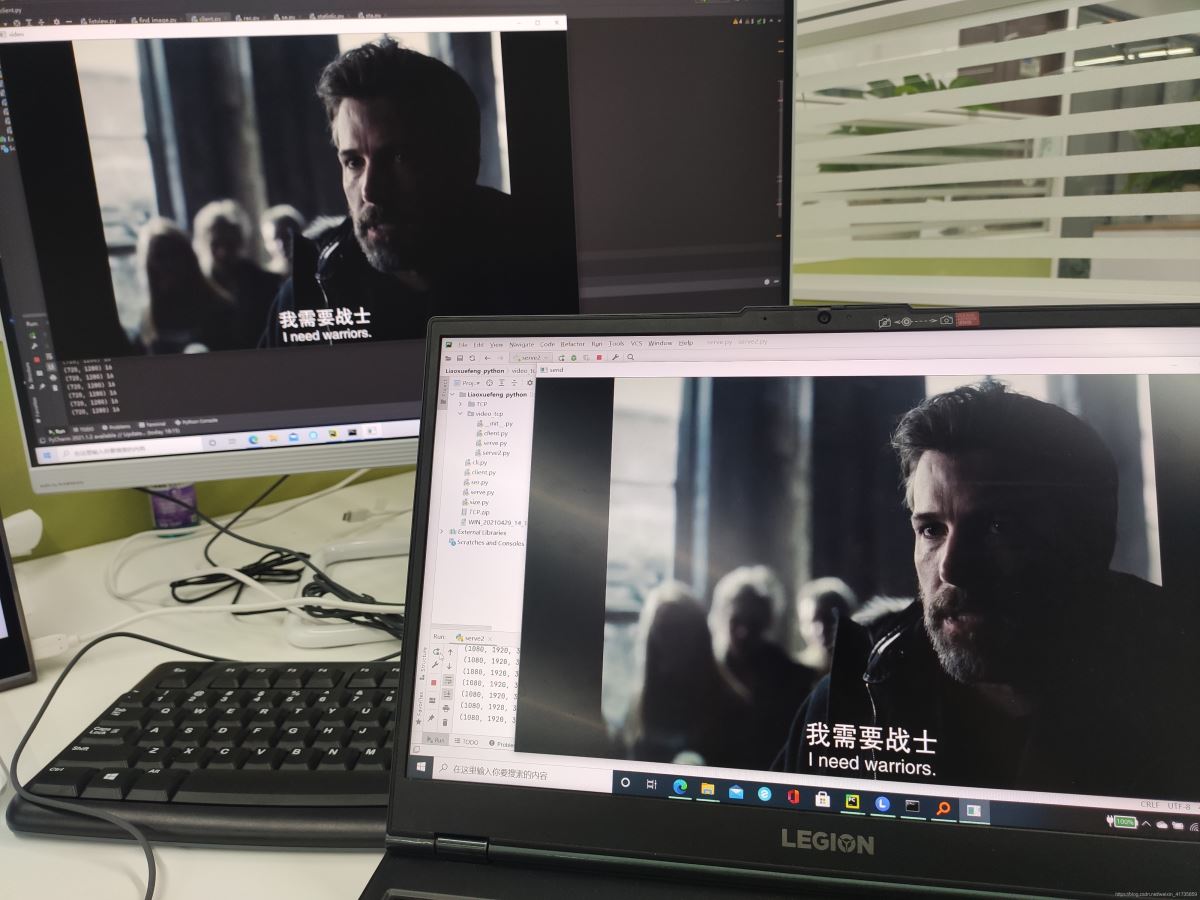

上圖中間的筆記本為發送端，其余兩個屏幕顯示的是接收端視頻。本文視頻傳輸實現的前提是確保發送端和接收端接在同一個局域網下。
發送端
import socket
import time
import cv2
import imagezmq
import traceback
import simplejpeg
# capture=cv2.VideoCapture(0) # 獲取攝像頭視頻
capture=cv2.VideoCapture(r"D:\project\dataset\video\測試.mp4")
# 192.168.100.104 為發送端主機ip地址
sender = imagezmq.ImageSender(connect_to='tcp://192.168.100.104:5555', REQ_REP=False)
rpi_name = socket.gethostname() # 獲取主機名
time.sleep(2.0)
jpeg_quality = 95 #調整圖片壓縮質量，95%
while(True):
try:
ref, frame=capture.read(0)
time.sleep(1/60)
image = cv2.resize(frame,(1280,720))
curtime = time.time()
msg = rpi_name+'*'+str(curtime)
# 通過simplejpeg函數將圖片編碼為jpeg格式，提高傳輸效率
jpg_buffer = simplejpeg.encode_jpeg(image, quality=jpeg_quality,
colorspace='BGR')
sender.send_jpg(msg, jpg_buffer)
cv2.imshow(rpi_name, image)
cv2.waitKey(1)
except:
print(traceback.print_exc())
break
接收端（可以多臺設備同時接收）
import cv2
import imagezmq
import traceback
import time
import simplejpeg
# 接收發送端數據，輸入發送端的ip地址
image_hub = imagezmq.ImageHub(open_port='tcp://192.168.100.104:5555',REQ_REP=False)
frame_count = 1
time1 = 0
while True:
try:
time1 = time.time() if frame_count == 1 else time1
name, image = image_hub.recv_jpg()
# 解碼
image = simplejpeg.decode_jpeg(image, colorspace='BGR')
cv2.imshow(name.split('*')[0], image)
cv2.waitKey(1)
time2 = time.time()
print(image.shape[:2], int(frame_count/(time2-time1)))
frame_count += 1
except:
print(traceback.format_exc())
break
2. TCP協議實現
發送端
import socket
import cv2
import sys
import numpy as np
address = ('192.168.100.104', 5005) # 服務端地址和端口
ser = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
ser.bind(address)
ser.listen(5)
# 阻塞式
print('waiting。。。')
conn, addr = ser.accept()
print('建立連接...')
print('連接對象：', addr)
cap = cv2.VideoCapture(r"D:\project\dataset\video\測試.mp4")
# cap = cv2.VideoCapture(0)
frames_num=cap.get(7)
print('視頻總幀數：',frames_num)
print('發送目標...')
count = 0
while cap.isOpened():
try:
data = conn.recv(1024)
data = data.decode()
if not data:
break
ret, frame = cap.read()
frame = cv2.resize(frame,(1280,720))
cv2.imshow('send', frame)
cv2.waitKey(1)
count += 1
# 數據打包有很多方式，也可以用json打包
img_encode = cv2.imencode('.jpg', frame)[1]
data_encode = np.array(img_encode)
str_encode = data_encode.tostring()
conn.sendall(str_encode)
except KeyboardInterrupt:
print('KeyboardInterrupt')
sys.exit(0)
接收端
import socket
import sys
import cv2
import numpy as np
import time
address = ('192.168.100.104', 5005) # 服務端地址和端口
cli = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
try:
cli.connect(address) # 嘗試連接服務端
except Exception:
print('[!] Server not found or not open')
sys.exit()
frame_count = 1
while True:
time1 = time.time() if frame_count == 1 else time1
trigger = 'ok'
cli.sendall(trigger.encode())
data = cli.recv(1024*1024*20)
image = np.frombuffer(data, np.uint8)
image = cv2.imdecode(image,cv2.IMREAD_COLOR)
cv2.imshow('video',image)
cv2.waitKey(1)
end_time = time.time()
time2 = time.time()
print(image.shape[:2], int(frame_count / (time2 - time1)))
frame_count += 1
cli.close()
